Ürün Kodu : 1000009604

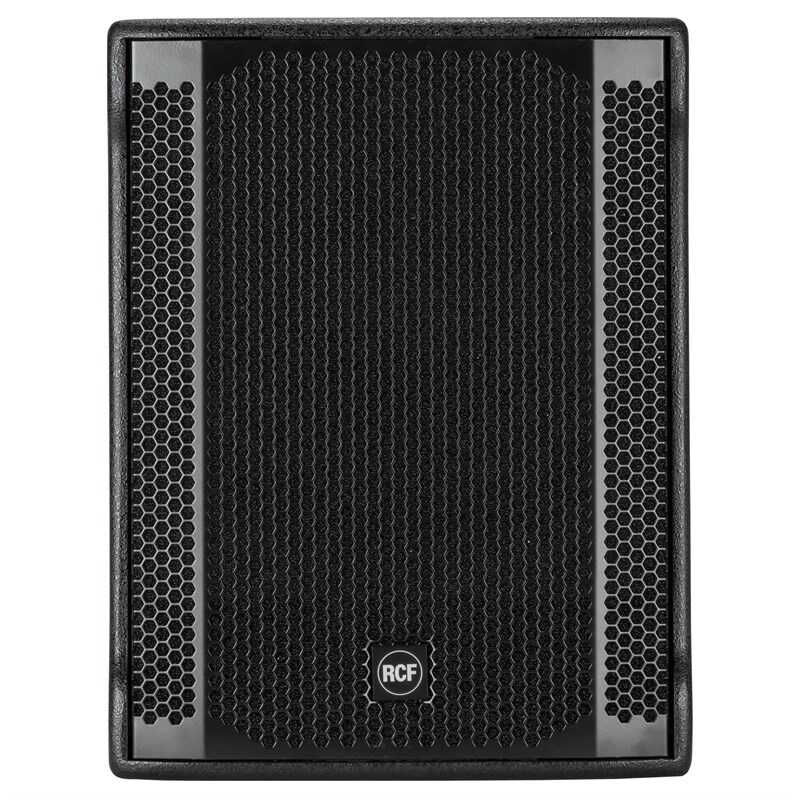

RCF SUB 705-AS II 15 inç 1400W Aktif Subbass Tipi Hoparlör

%55 İndirim
67.625 TL
150.278 TL

Rcf SUB 705-AS II 15 inç 1400 Watt RMS Aktif Subbass



The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15” high power woofer with 3” voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12” and 15”, ideal for RCF ART and D-Line Series.

• 1400 Watt Digital Amplifier
• 15' Woofer, bass reflex housing
• Stereo crossover
• Switchable crossover frequencies
• Phase-reverse switch
• Electronic equalization, soft limiter and protection
• Stereo XLR input, Stereo XLR signal output



POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.




CABINET & MECHANICS
The RCF cabinets are made of the best multi-ply hardwood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

POWERFUL LOWS
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive musical experience.





FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz
MAX SPL @ 1M: 131 dB
WOOFER: 15' neo, 3.0' v.c
INPUT CONNECTORS: XRL
OUTPUT CONNECTORS: XRL
INPUT SIGNAL: bal/unbal
CROSSOVER FREQUENCIES: Selectable
INPUT SENSITIVITY: -2 dBu/+4 dBu
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
HI-PASS/LOW-PASS FREQUENCIES: 110 Hz/80 Hz
CONTROLS: Volume, EQ, Phase, Xover
TOTAL POWER: 1400 W Peak, 700 W RMS
LOW FREQUENCIES: 1400 W Peak, 700 W RMS
COOLING: Convection

CE MARKING: Yes
CONNECTIONS: VDE
CABINET/CASE MATERIAL: Baltic birch plywood
HANDLES: 2 side
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
HEIGHT: 568 mm / 22.36 inches
WIDTH: 430 mm / 16.93 inches
DEPTH: 595 mm / 23.43 inches
WEIGHT: 28.6 kg / 63.05 lbs
PACKAGE HEIGHT: 605 mm / 23.82 inches
PACKAGE WIDTH: 470 mm / 18.5 inches
PACKAGE DEPTH: 640 mm / 25.2 inches
PACKAGE WEIGHT: 32.4 kg / 71.43 lbs
