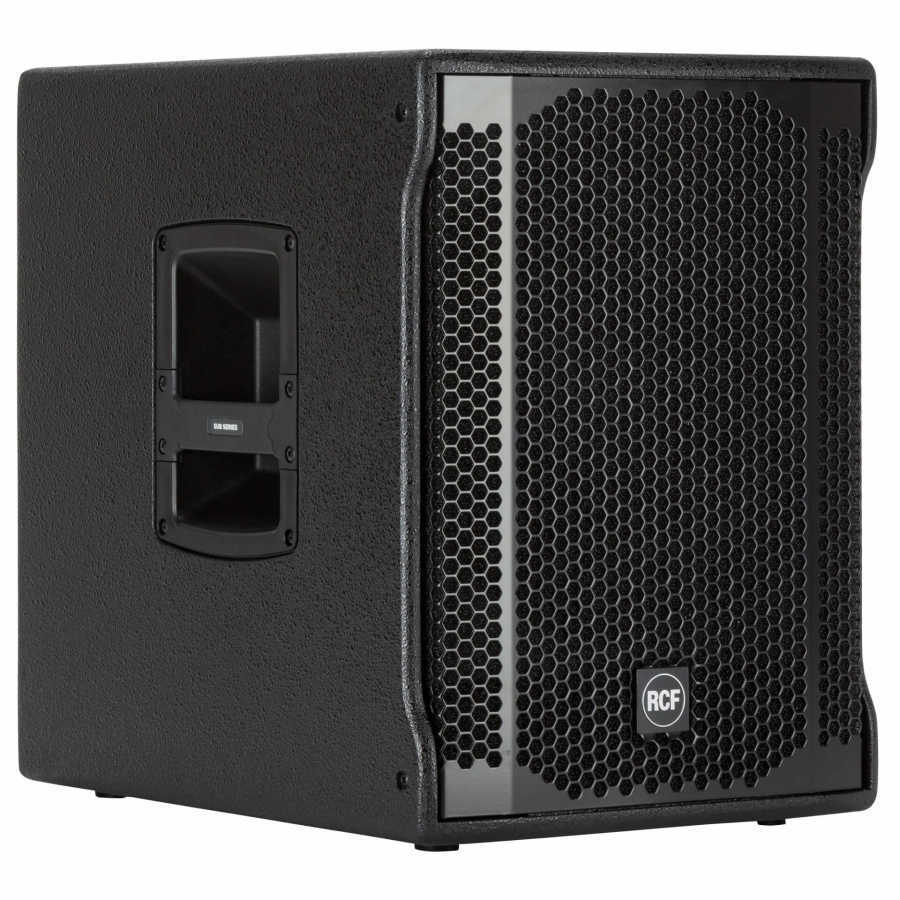

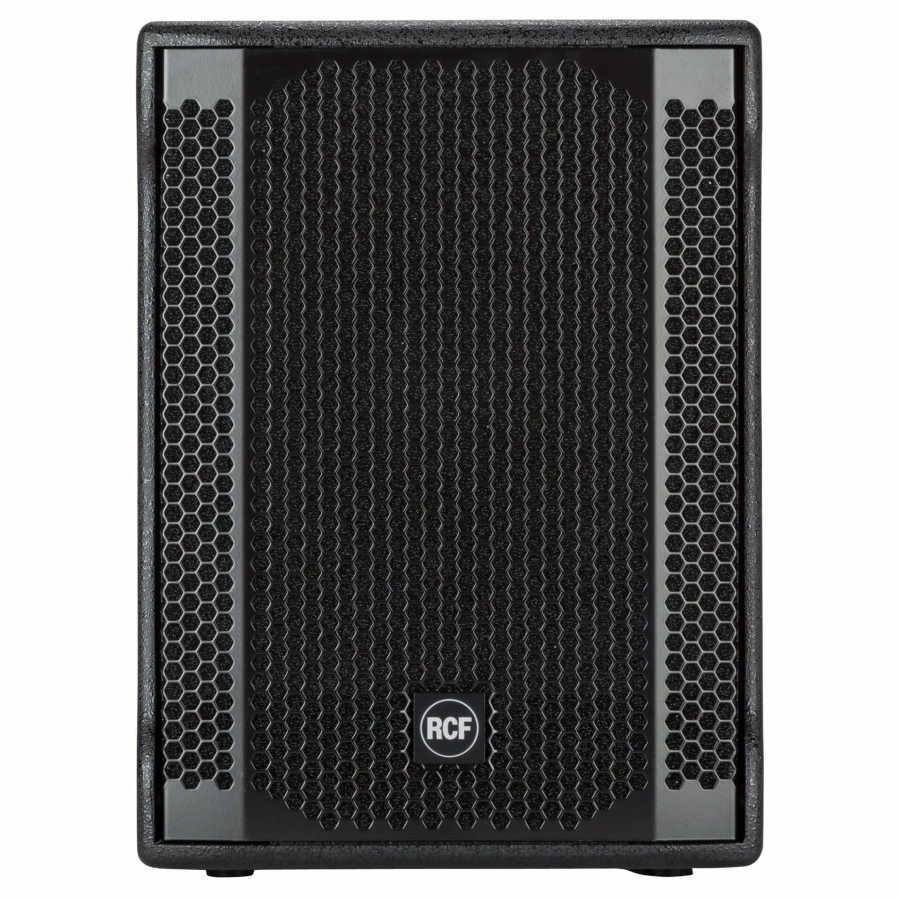

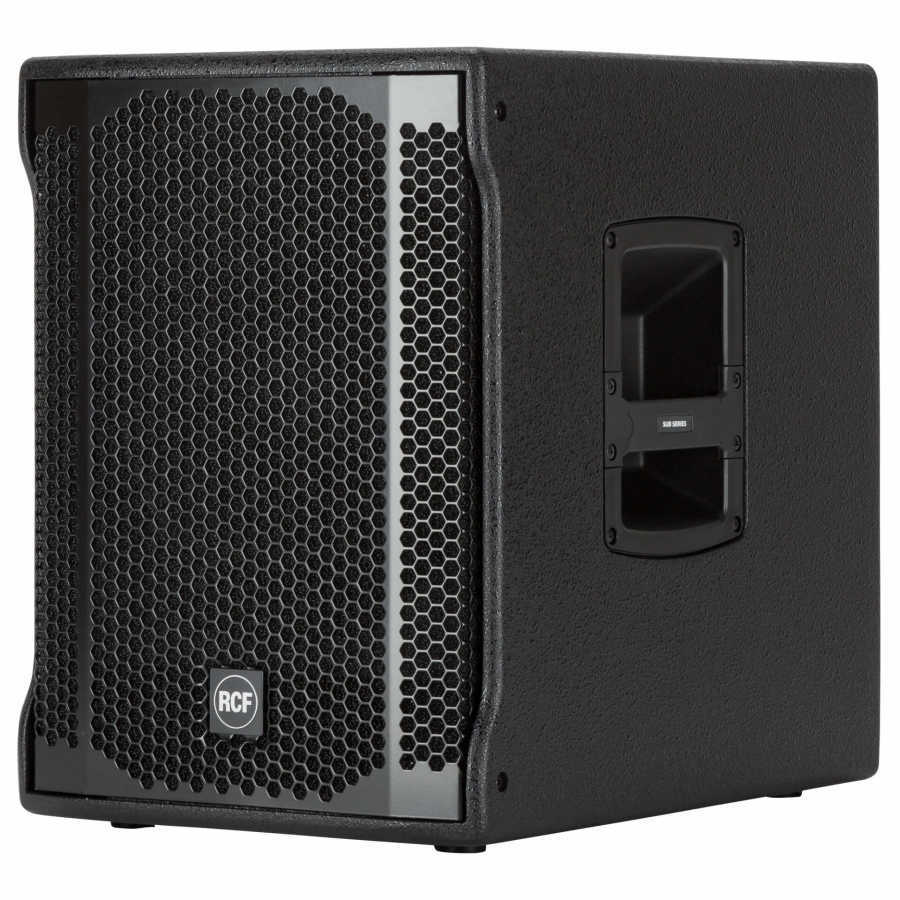

RCF SUB 702-AS II 12 inç 1400W Aktif Subbass Tipi Hoparlör

Rcf SUB 702-AS II 12 inç 700W RMS Aktif Subbass


Housing a 12' woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.

• 1400 Watt Digital Amplifier
• 12' Woofer, bass reflex housing
• Stereo crossover
• Switchable crossover frequencies
• Phase-reverse switch
• Electronic equalization, soft limiter and protection

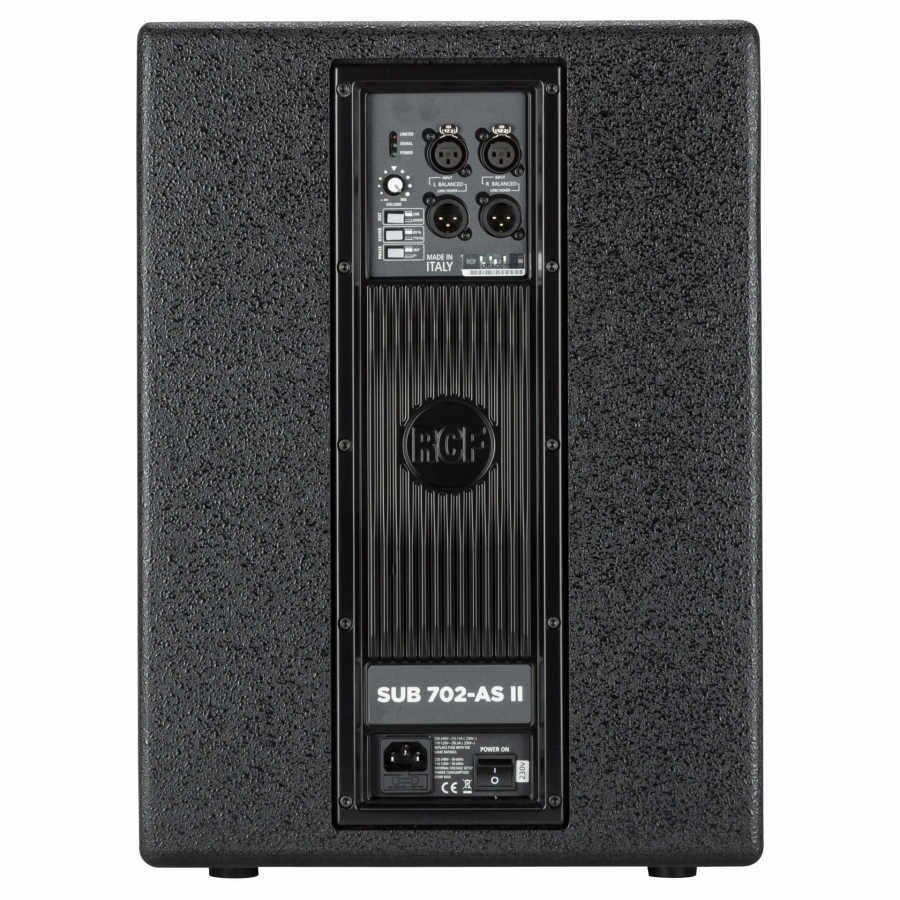

• Stereo XLR input, Stereo XLR signal output


POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.


CABINET & MECHANICS
The RCF cabinets are made of the best multi-ply hardwood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

POWERFUL LOWS
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive musical experience.


FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz
MAX SPL @ 1M: 129 dB
WOOFER: 12' neo, 2.5' v.c
INPUT CONNECTORS: XRL
OUTPUT CONNECTORS: XRL
INPUT SIGNAL: bal/unbal
CROSSOVER FREQUENCIES: Selectable
INPUT SENSITIVITY: -2 dBu/+4 dBu
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
HI-PASS/LOW-PASS FREQUENCIES: 110 Hz/80 Hz
CONTROLS: Volume, EQ, Phase, Xover
TOTAL POWER: 1400 W Peak, 700 W RMS
LOW FREQUENCIES: 1400 W Peak, 700 W RMS
COOLING: Convection

CE MARKING: Yes
CONNECTIONS: VDE
CABINET/CASE MATERIAL: Baltic birch plywood
HANDLES: 2 side
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
HEIGHT: 487 mm / 19.17 inches
WIDTH: 354 mm / 13.94 inches
DEPTH: 498 mm / 19.61 inches
WEIGHT: 19 kg / 41.89 lbs
PACKAGE HEIGHT: 524 mm / 20.63 inches
PACKAGE WIDTH: 536 mm / 21.1 inches
PACKAGE DEPTH: 400 mm / 15.75 inches
PACKAGE WEIGHT: 22.4 kg / 49.38 lbs
